Tag Pin
[Tag Fasteners] |
|
They are the most
economical, elegant and pilfer-proof way of attaching a `Tag-Card'
on to fabric, stuffed toys, textile articles, curious and other
miscellaneous articles, either by the help of a tag gun or just
by hand. We are the only company
in the world to have developed our own formulated raw material
"Special PP" to make tag pins more
softer and prevent the pins from getting brittle during winter.
This is highly preferred by our customers all over the world.
|
|
|
|
Standard Tag
Pin |
|
Standard tag pin
are pierced through a 1.8mm / 2.0mm / 2.2mm dia. needle
of the tag gun, in to the fabric. They are available in
the following:
Raw-Material:
PP, Special PP and Nylon
Sizes [in mm]:
PP : 10, 12 15, 19, 20, 25, 30, 35, 40, 45, 50, 55, 65,
75, 90, 100, 125, 150, 175
Special PP : 10, 12 15, 19, 20, 25, 30, 35, 40, 45, 50,
55, 65, 75, 90, 100, 125, 150, 175
Nylon : 10, 12 15, 19, 20, 25, 30, 35, 40, 45, 50, 55,
65, 75, 90, 100 [Note:
any odd sizes can also be customized in PP & Special
PP from 10mm to 175mm and in Nylon from 15mm to 100mm]
Packing Details:
50 pins per strip \\ 5000 pins per box \\ 25-50 boxes
per carton
The printing on the inner boxes can be customised as
per the customer's deigns, but only for a M.O.Q. of
1x20' container or above, combined with our other products.
Suitable Tagging Gun:
It can be used with any Standard Tag Gun or Free Pitch
Standard Tag Gun. We, however recommend it to be used
with either Arrow 9S, Arrow 9L, Arrow 9SA, Arrow 9SB,
Tagstar SA or Tagstar SB tag guns.
Recommended Usage:
For Normal / Thicker Fabrics
Colors Available:
Can be customized to any specific color required.
|
|
|
|
|
|
|
|

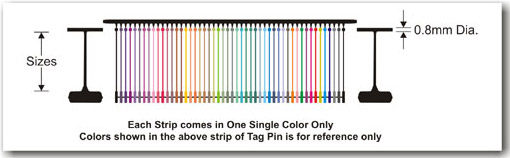

Fine Tag Pin |
|
Fine Tag Pins
are pierced through a 1.4mm dia. needle of the tag gun,
into the fabric. They are available in the following:
Raw-Material:
PP, Special PP and Nylon
Sizes [in mm]:
PP : 12, 15, 19, 20, 25, 30, 35, 40, 45, 50, 55, 65, 75
Special PP : 12, 15, 19, 20, 25, 30, 35, 40, 45, 50, 55,
65, 75
Nylon : 12, 15, 19, 20, 25, 30, 35, 40, 45, 50
[Note: any odd sizes can also be customized in PP &
Special PP from 12mm to 75mm and in Nylon from 15mm to
50mm] Packing Details:
50 pins per strip \\ 5000 pins per box \\ 25-50 boxes
per carton.
The printing matter on the inner boxes..... Suitable
Tagging Gun:
It can be used with any Fine Tag Gun or Free Pitch Fine
Tag Gun. We, however recommend it to be used with either
Arrow 9F or Tagstar XB tag guns. Recommended
Usage:
For Delicate / Fine Fabrics
Colors Available:
Can be customized to any specific color required.
|
|
|
|
|
|
|
|

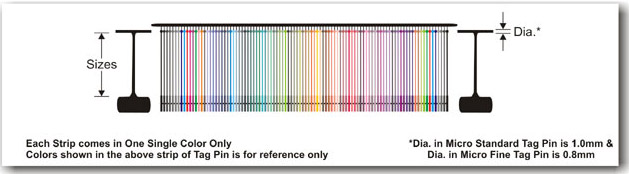

Micro Standard
/ Fine Tag Pin
|
|
Micro-spaced
tag pins come in strips of 100 pins. These are designed
to accommodate more pin in less space, basically to
increase user convenience and also to cut down costs
towards freight & packaging. They are available
in the following:
Raw-Material:
Special PP and Nylon.
Sizes [in mm]:
Special PP : 08, 10,12,15, 19, 20, 25, 30, 35, 40, 45,
50, 55, 65, 75
Nylon : 08, 10,12,15, 19, 20, 25, 30, 35, 40, 45, 50,
55, 65, 75
[Note: any odd sizes can also be customized in Special
PP & Nylon from 08mm to 75mm]
Packing Details:
100 pins per strip \\ 10000 pins per box \\ 10-50 boxes
per carton.
Suitable Tagging Gun:
For Micro Standard Tag Pin - Use only Free Pitch Standard
Tag Guns. We, however, recommended Arrow 9SA, Arrow
9SB, Tagstar SA or Tagstar SB tag guns.
For Micro Fine Tag Pin - use only Free Pitch Fine Tag
Guns. We, however, recommend it to be used with Arrow
9F, Arrow 9FL or Tagstar XB tag guns.
Recommended Usage:
For Micro Standard Tag Pin - For Normal / Thicker Fabrics
For Micro Fine Tag Pin - For Delicate / Fine Fabrics
Colors Available:
Can be customized to any specific color required
|
|
|
|
|
|
|
|

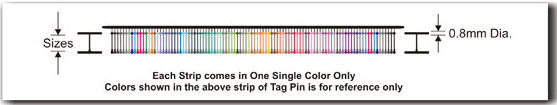

Micro Fine `I' Tag
Pin [`T' - End pin] |
|
In Micro Fine
`I' Pins, both the ends of the tag pin look alike. It
is useful where both the ends are exposed on the garment.
They are available in the following:
Raw-Material:
Special PP and Nylon (recommended) Sizes
[in mm]:
Special PP : 05, 06, 07, 09, 11, 15, 17, 19
Nylon : 05, 06, 07, 09, 11, 15
[Note: any odd sizes can also be customized in Special
PP from 05mm to 19mm and in Nylon from 05mm to 15mm]
Packing Details:
100 pins per strip \\ 10000 pins per box \\ 10-50 boxes
per carton.
The printing on the inner boxes can be customised as per
the customer's deigns, but only for a M.O.Q. of 1x20'
container or above, combined with our other products. Suitable
Tagging Gun:
It can be used with any Free Pitch Fine Tag Gun. We, however,
recommended it to be used with either Arrow 9F or Tagstar
XB tag guns. Recommended
Usage:
For delicate / fine fabrics, which need to be closely
tagged. It is highly recommended for tagging labels, where
both the ends of the tag pin need to be visible, or where
the `Tag - Card' used is folded in `V' type and the tag
pin needs to look like a stapler-pin.
Colors Available:
Can be customized to any specific color required.
|
|
|
|
|
|
|
|

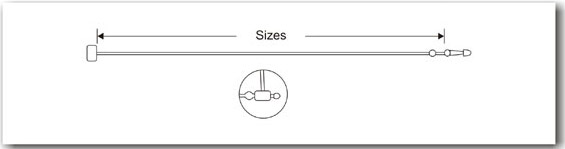

Tag Pins - Loop Pin |
|
Loop Pins
can be used on any article, which has a provision for
a loop. It can be just hand fastened. Loop Pins are available
in the following:
Raw-Material:
Special PP and Nylon Sizes
Of Tag Pins [in inches]:
Special PP & Nylon - 3", 5", 7" &
9" Packing
Details:
5000 pins per box \\ 20-25 boxes per carton.
The printing on the inner boxes can be customised as per
the customer's deigns, but only for a M.O.Q. of 1x20'
container or above, combined with our other products. Recommended
Usage:
For articles in which making a hole using tag gun is not
possible / desired, such as spectacles, mugs, lampshades,
telephones, plants, etc. Also suited for garments like
shirts, trousers, etc. Colors
Available:
Can be customized to any specific color required.
|
|
|
|
|
|
|
|

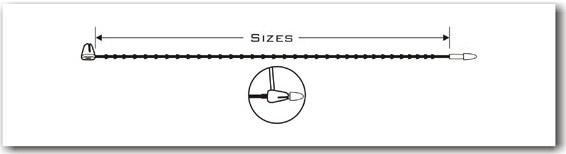

Tag Pins - Loop
Tie Pin |
|
Loop Tie Pins
are stepped Loop Pins. The size of the loop can be adjusted
as desired. They are available in the following:
Raw-Material:
PP and Nylon
Sizes Of Tag Pins [in inches]:
PP : 4", 5", 6", 7" & 9"
Nylon : 4" & 5"
Packing Details:
1000 pcs per poly bag \\ 100 poly bags per carton.
The printing on the inner boxes can be customised as per
the customer's deigns, but only for a M.O.Q. of 1x20'
container or above.
Recommended Usage:
For articles in which making a hole via tag gun is not
possible / desired, such as spectacles, mugs, lampshades,
telephones, plants, etc. Also suited for garments like
shirts, trousers, etc. The loop can be locked at any level
on the length of the pin.
Colors Available:
Can be customized to any specific color required.
|
|
|
|
|
|
|
|

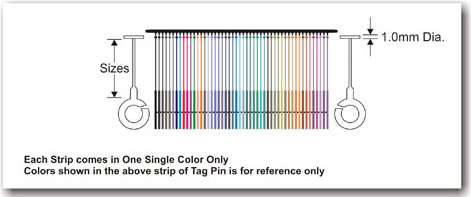

Standard Ring
Pin |
|
Standard
Ring Pins are available in the following:
Raw-Material:
Special PP and Nylon Sizes
[in mm]: PP
& Nylon - 15, 25, 35
Packing
Details:
50 pins per strip \\ 5000
pins per box \\ 10-20 boxes per carton.
The printing on the inner boxes
can be customised as per the customer's deigns, but only
for a M.O.Q. of 1x20' container or above, combined with
our other products..
Suitable
Tagging Gun:
It can be used with any Standard Tag Gun or Free Pitch
Standard Tag Gun. We, however recommend it to be used
with either Arrow 9S, Arrow 9L, Arrow 9SA, Arrow 9SB,
Tagstar SA or Tagstar SB tag guns.
Recommended
Usage:
For Normal / Thicker Fabrics.
Colors Available:
Can be customized to any specific
color required.
|
|
|
|
|
|
|
|
Standard Hook
Pin |
|
Standard Hook Pins are
available in the following:
Raw-Material:
PP and Nylon
Sizes [in mm]:
PP : 25, 35, 50, 65, 75
Nylon : 25, 35, 50
[Note: any odd sizes can also be customized in PP from
25mm to 75mm and in Nylon from 25mm to 50mm]
Packing Details:
50 pins per strip \\ 5000 pins per box \\ 10 boxes per
carton.
The printing on the inner boxes can be customised as
per the customer's deigns, but only for a M.O.Q. of
1x20' container or above.
Recommended Usage:
For articles, which can be tagged using a tag gun, wherein
the lightweight article requires to be hung for display.
Examples - gift articles, socks, stuffed toys, etc.,
or where tags need to be easily replaceable.
Suitable Tagging Gun:
It can be used with any Standard Tagging Gun / Free
Pitch Standard Tag Gun. We, however recommend it to
be used with either Arrow 9S, Arrow 9L, Arrow 9SA, Arrow
9SB, Tagstar SA or Tagstar SB tag guns.
Colors Available:
Can be customized to any specific color required.
|
|
|
|
|
|
|
|

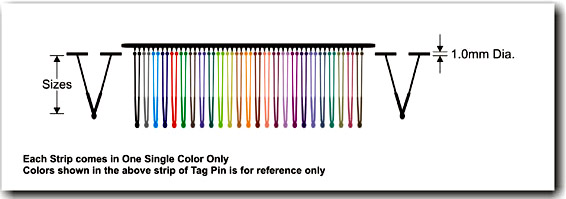

Standard
Double Pin |
|
Standard Double Pins (also
known as `V' Pins) are available in the following:
Raw-Material:
PP and Nylon [recommended]
Sizes [in mm]:
PP - 35, 50 & 65
Nylon - 25, 35, 50 & 65
Packing Details:
50 Pins per Strip [25 pairs per strip] \\ 5000 pins per
box [2500 pairs per box] \\ 25 boxes per carton.
The printing on the inner boxes can be customised as per
the customer's deigns, but only for a M.O.Q. of 1x20'
container or above, combined with our other products.
Suitable Tagging Gun:
It can be used with any Standard Tag Gun or Free Pitch
Standard Tag Gun. We, however recommend it to be used
with either Arrow 9S Arrow 9L, Arrow 9SA, Arrow 9SB, Tagstar
SA or Tagstar SB tag guns.
Recommended Usage:
For articles which can be tagged using a tag gun, where
in one label require to be attached to two or more articles.
Example - a pair of textile articles, pants, shirts, skirts,
dress materials, towels, etc.
Colors Available:
Can be customized to any specific color required. |
|
|
|
|
|
|
|
|
|
|
